Description
The Dynatrac 3 inch Suspension Lift System 2 builds off of System 1 with additional components to further improve drivability. Made for adding lift height and wheel travel to the JL without breaking the bank.
The Dynatrac 3 inch Suspension Lift System 2 for the 2018-2023 Jeep Wrangler JL is designed for the driver looking to drastically improve the performance and ride quality of their vehicle. System 2 builds off of System 1 with additional components to further improve drivability.

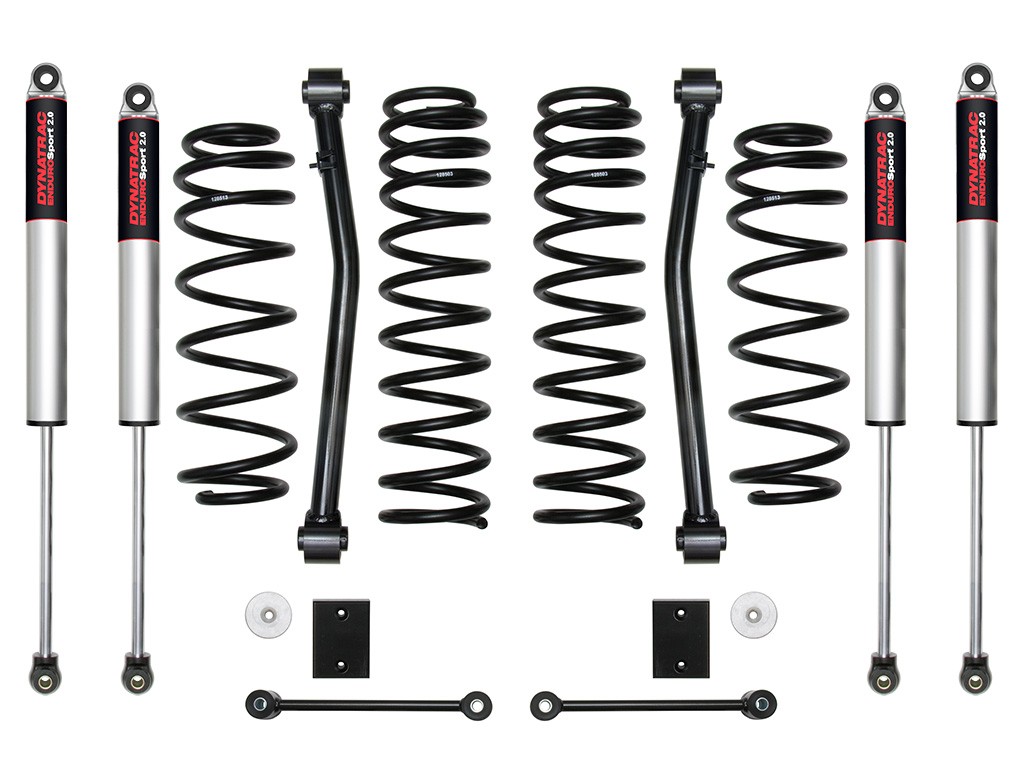

This system includes 3 inch lift dual rate coil springs, 2.0 EnduroSport shocks, tubular steel front lower links, bump stop spacers, sway bar links, and all necessary hardware to complete the installation. With this combination of components, Dynatrac was able to increase wheel travel numbers by 3 inch in front and 2 inch in the rear, significantly improving the performance of the 2018-2023 JL.
The front lower links included with this system are constructed from thick wall steel tubing, provide increased castor numbers, and feature dual durometer bushings for noise free operation, maximum articulation, and minimal bind. The 3.0 Lift System allows or fitment of 35 inch tires when used with Dynatrac's recommended wheel specifications.
For users looking to install 37 inch tires, an optional extended bump stop spacer kit (Part # DT922029) is available.
Features and Benefits:
- 100 percent bolt-on system makes for an easy install
- 2.0 EnduroSport shocks with JEEP JL specific valving
- 3 inch front, 2 inch rear increase in wheel travel
- 3 inch lift height over stock
- Dual rate coil springs with lifetime guarantee against sagging/breakage
- Fits 35 inch tires (37 inch with optional extended bump stop spacer kit, Part # DT922029)
- Improves on and off-road ride quality over stock
- Tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- Tubular steel link arms with dual durometer bushings for noise free performance, maximum articulation, and minimal bind
Details:
- Bushings Included: No
- Coil Spring End 1 Type: Closed
- Coil Spring End 2 Type: Closed
- Coils Quantity Front: 2
- Coils Quantity Rear: 2
- Front Spring Rate Type: Progressive Dual Rate
- Grade Type: Performance
- Maximum Lift: 3 Inch
- Maximum Lift Front: 3 Inch
- Maximum Lift Rear: 3 Inch
- Mounting Hardware Included: Yes
- Rear Spring Rate Type: Progressive Dual Rate
- Reservoir Style: Internal
- Shock Body Diameter: 2.0 Inch
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- Lift Height: 3.0 Inch
- Sold As: Each
Application Notes:
- 2018-2020 Jeep Wrangler Unlimited Moab Unlimited Rubicon Deluxe Unlimited Rubicon Xtreme (Front and Rear) (Qualifier: Use Up To 35 (in) x 12.50 (in) Tires, For 37x12.50 (in) Tires Use Bump Stop Spacer Kit, Raises Front 3 (in), Raises Rear 3 (in), -6 (mm) Offset Wheels Recommended)
