2.5 Inch Starter System Suspension System for Jeep Wrangler JK With Bilstein 5100 Shocks Rock Krawler
Description
Rock Krawler 2.5 Starter System Suspension System for Jeep Wrangler JK
The Rock Krawler 2.5 Starter System is the introduction to a what could evolve into a full RK Suspension system. This kit gives you the minimum you must have in geometry correction when adding taller lift springs for your Wrangler.
You will experience an excellent highway/around the town ride due to our triple rate coils. You will have enough coil length to flex out on a trail without unseating a coil spring.
To support the extra travel, stainless steel brake line drop brackets are also included. The fixed high clearance front lower control arms will correct the caster and front axle position for proper drive-ability.
Coil spring bow is also addressed in this Starter System at a very friendly budgeted price. When we design a system, our goal is to provide you with the most comprehensive solution and the best geometry, install exceptional value, and be the foundation for every adventure whether it be on the Street or down a Trail!
Rock Krawler Suspension is the best place to start your Wrangler build.
System Benefits:
- Complete Bolt In System
- Excellent Highway Ride
- Improved Off-Road Ability Allows for 35 inch - 37 inch Tall Tires Triple Rate Front & Rear Coil Springs
- Improved Rear Roll Center Caster Correction Coil Spring Bow Correction In The Rear Upgradeable To Any Other System
- Lifetime Warranty Coverage

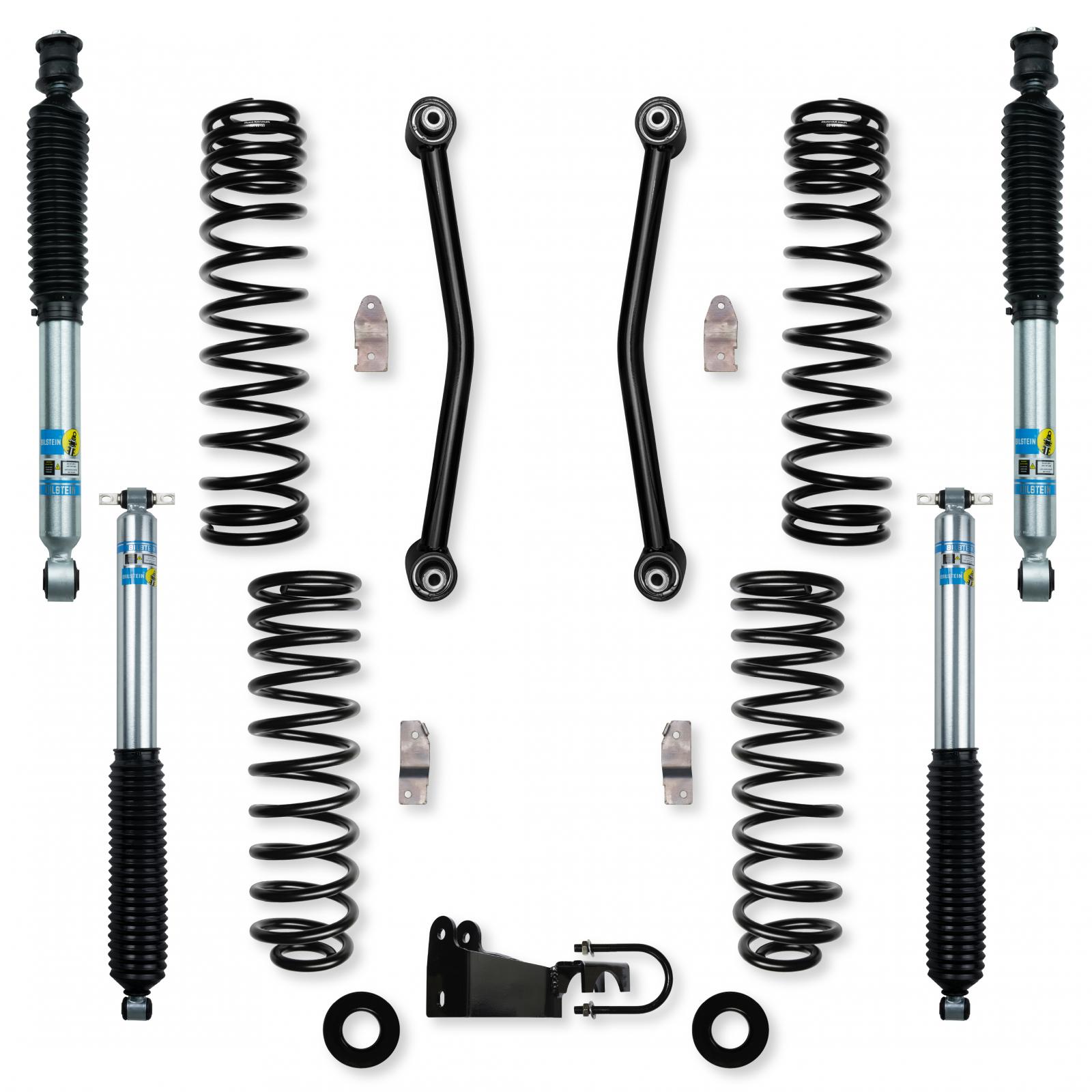

System Includes:
- (4) Triple Rate Coil Springs
- (2) High Clearance Front Lower Control Arms Made From 1.5 inch Solid Alloy Steel With Adventure Series joints
- (2) Coil Spring Correction Seats
- (4) Stainless Steel Brake Line Drop Brackets
- (1) Bolt on Rear Track Bar Bracket Made From 1/4 inch Thick Laser Cut Steel
- (Depending on shock package chosen)
- Bump Stops Are Included With All Shock Options
- If you choose no shocks, bump stops can be purchased separately - RK07123
Shock Information:
- All RRD Shocks and Coilovers are designed and built in-house
- Generic Front Shock Length - 16.5 inch Collapsed/26 inch Maximum Extended
- Generic Rear Shock Length - 15.3 inch Collapsed/24.31 inch Maximum Extended
- Bilstein 5100 Shocks
- A great pairing with our multi-rate coil springs
- Maintenance Free RRD 2.25 IFP Shocks
- 2.25 inch O. D. Military Grade Hard Anodized Fluted Aluminum Shock Body
- Cooling Surface Area of a 2.5 inch Shock
- 3/4 inch 17-4 PH Stainless Steel, Hard Chrome Plated and Polished Shaft
- Billet Aluminum Valve Circuit and Components
- Dual DU Shaft Bearings and Double Redundant Sealing Methods Built In-house
- Serviceable/Rebuildable/Revalveable
- More Info
Wheel Fitment:
- 37 inch Tall Tires - Recommend 4.5 inch of Back Spacing 38 inch Tall Tires - Recommend 3.5 inch of Back Spacing
Tire Fitment:
- Full OEM Fenders 35 inch Tall Tires (2 inch Bump Stop Height Recommended) Trimmed or High Lined OEM Fenders 37 inch Tall Tires (2 inch Bump Stop Height Recommended)
General Notes:
- Recommend Adding A Front Adjustable Track Bar (RK02024HD) All Heights Based Off Rubicon Trim Level
