2.5 Inch Ultimate Adventure Suspension System for Jeep Wrangler JK With IFP Shocks Rock Krawler
Description
Rock Krawler 2.5 Ultimate Adventure Suspension System for Jeep Wrangler JK
The Rock Krawler 2.5 Ultimate Adventure Mid-Arm System is specifically designed for Wrangler owners who want a complete system, bolt-in installation, and some of the best articulation of any mid-arm kit on the market. Our system proves its durability and off-road performance every time you hit the streets or trail!
The term Ultimate Adventure System comes from the inclusion of 4 non-adjustable Lower control and 4 fully adjustable upper arms with our 100 percent service-free Adventure Series joints installed. Our industry-leading, Adventure Series mid-arms offer a total of 70 degrees of misalignment when paired with our Adventure Series joints at the frame connection and at the axle.
The inherent bind in a factory JK control arm is greatly reduced. Driving you home with the most comfortable ride possible in a Wrangler, are our Triple-Rate front and rear coils.
All 4 coils work together to achieve excellent on-road comfort that we feel is better than the OEM springs. The coil itself is built with the proper Free-length for off-road articulation and stays firmly seated in the coil bucket (as long as a proper length shock is installed), and overall, a very controlled reaction to bumps, rocks, sand, mud and whatever else you can manage to throw at them!
All Rock Krawler JK systems include correction pads that reduce the spring bow inherent in the factory setup. The provided track bar geometry corrections, both front and rear, lets you perfectly center the axles so there is no compromise in on-road handling.
When we design a system, our goal is to provide you with the most comprehensive solution and the best geometry, install exceptional value, and be the foundation for every adventure whether it be on the Street, in tow or down a trail! Thank you for considering Rock Krawler Suspension.
System Benefits:
- Complete Bolt-in System
- Excellent Highway Ride And Handling The Best Off-road Ability Of All Mid-arm Systems
- Improved Rear Roll Center
- Tuned Triple-rate Coils
- Spring Correction Seats
- Vehicle Lean Correction Upgradable To RK Long-arm System Best Technical Support In The Industry Jeep Remains Level On All 4 Corners
- Lifetime Warranty Coverage

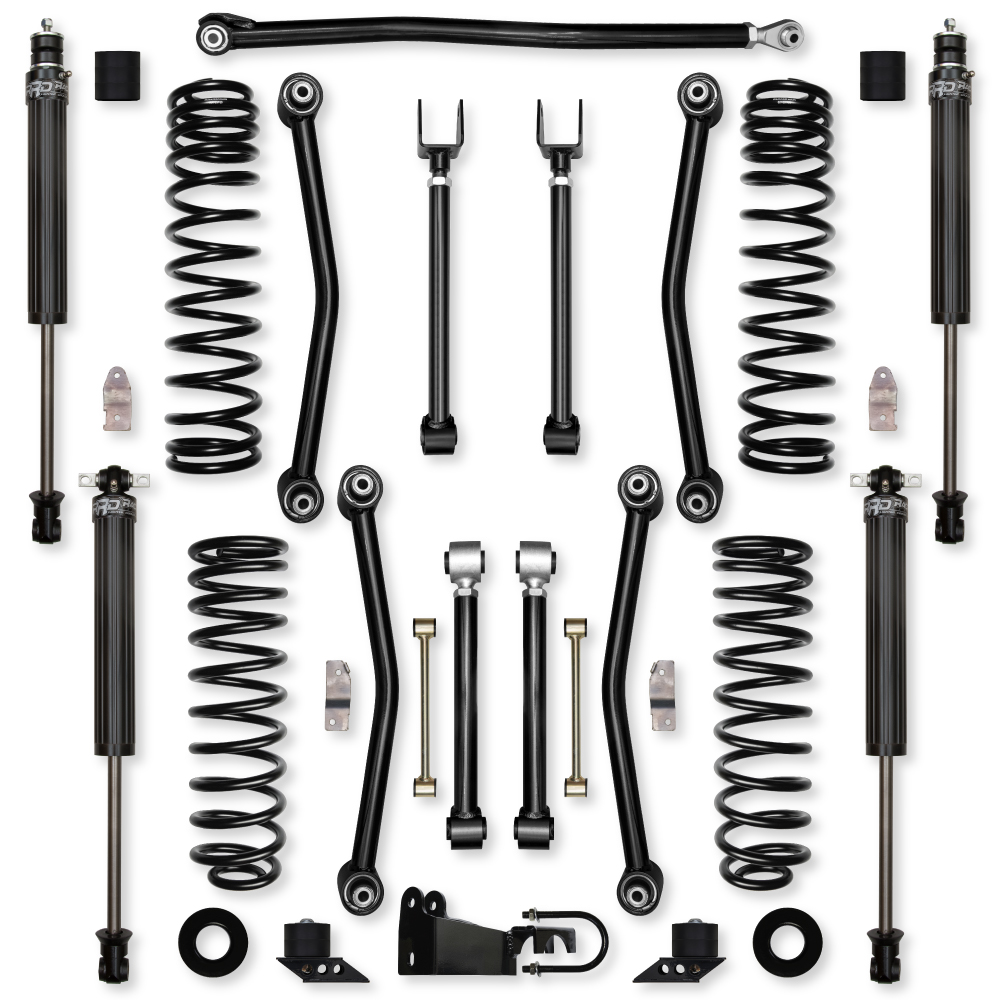

System Includes:
- (4) Triple Rate Coil Springs
- (2) Front Lower Control Arms
- (2) Rear Lower Control Arms
- (2) Front Upper Control Arms
- (2) Rear Upper Control Arms
- (1) Adjustable Front Track Bar
- (2) Rear Spring Pads
- (2) Set Length Front Sway Bar Links
- (1) Bolt-on Rear Track Bar Relocation Bracket
- (1) Front and Rear Brake Line Drop Brackets
- (Depending on shock package chosen)
- Bump Stops Are Included With All Shock Options
- If you choose no shocks, bump stops can be purchased separately - RK07123
Shock Information:
- All RRD Shocks and Coilovers are designed and built in-house
- Generic Front Shock Length - 16.5 inch Collapsed/26 inch Maximum Extended
- Generic Rear Shock Length - 15.3 inch Collapsed/24.31 inch Maximum Extended
- Bilstein 5100 Shocks
- A great pairing with our multi-rate coil springs Maintenance Free Front: RRD04042-B51 Rear: RRD04043-B51 RRD 2.25 IFP Shocks
- 2.25 inch O. D. Military Grade Hard Anodized Fluted Aluminum Shock Body
- Cooling Surface Area of a 2.5 inch Shock
- 3/4 inch 17-4 PH Stainless Steel, Hard Chrome Plated and Polished Shaft
- Billet Aluminum Valve Circuit and Components
- Dual DU Shaft Bearings and Double Redundant Sealing Methods Built In-house
- Serviceable/Rebuildable/Revalveable
- More Info
Wheel Fitment:
- We typically recommend 4.5 of backspacing on a wheel used with 33 & 35 tall tires We typically recommend 3.5 of backspacing on a wheel used with 37 tall tires
Tire Fitment:
- Full OEM Fenders 33 or 35 inch Tall Tires Flat Fenders 37 inch Tall Tires
General Notes:
- All lift heights based on Rubicon models for standard style build (i.e. front bumper and winch, rear bumper and full size spare).
- If building with a spare delete we recommend dropping 1 inch in coil lift height for the rear.
- If building an overland or heavily upfitted build in the back, we recommend upsizing 1 inch in coil lift height for the rear.
- We recommend a new front driveshaft if you plan to off-road routinely.
- (Adam's Driveshaft, Tom Woods, J.E. Reel)
