3.5 Inch X-Factor Pro Elite Coilover Mid-Arm Suspension System for Jeep Wrangler JL Gas Models Comp System Stage 2 Rock Krawler
Description
Rock Krawler 3.5 X-Factor Pro Elite Coilover Mid-Arm System for Jeep Wrangler JL (Gas Models)
The Rock Krawler 3.5 X-Factor Pro Elite Coilover Mid-Arm System is specifically designed for Sport and Sahara owners who want a complete system, bolt-in installation, and the best articulation of any mid-arm kit on the market. The lower control arms are our signature PB+J (Pure Beef and Jealousy) mid-arms machined from 2 inch x 3 inch billet 7075 Aluminum.
All 4 other control arms are machined from round 7075 Aluminum and come with the benefits of X-Factorbuilt right in. Our system proves its durability and off-road performance every time you hit the streets or trail!
Our industry-leading, X-Factor Series, adjustable upper and lower control arms offer a total of 95 degrees of misalignment when paired with our Pro-X Krawler Joints and Adventure Series joints. The inherent bind in a factory JL control arm is greatly reduced.
Our maintenance-free Adventure Series joints are found in your front and rear control arms at the frame connection, while our PRO Krawler Joints tie in your axle connections. With so much adjustability, it allows you to precision tune the JL's caster and pinion angle front and rear.
The Gen 2 front sway bar disconnects allow you to maximize axle travel when you need it quickly and easily.
The Comp System (Front Coilovers w/Rear Coil Combination) is ideal for those that want the adjustability and performance of coilover racing shocks up front, but still want to use their Wrangler to carry small loads or tow small trailers. There are two options for the Comp Systems you can choose from.
The standard or Stage 1 System features 2 5/8 RRD Racing Coilovers w/Remote Reservoirs up front paired with matching 2 5/8 RRD Racing Shocks w/Remote Reservoirs in the rear for a well tuned package. Or you can opt for the Stage 2 Comp System which will include Fast CD (Compression Dampening) Adjusters on the coilovers and rear shocks for an even greater level of tuneability.
Like all of our systems, amazingly tuned ride and handling is our number one priority! It is no different with our coilover systems.
Coilovers add another level of tuneability for the vehicle owner to further enhance the ride, handling and off road performance to their liking. Install exceptional value, and be the foundation for every adventure whether it be on the Street or on the Trail with a Rock Krawler Coilover Suspension System!
Thank you for considering Rock Krawler Suspension.
System Benefits:
- Excellent Highway Ride and Handling The Best Off-Road Ability of All Mid-Arm Systems
- Improved Rear Roll Center 13.3 inch of Front Axle Travel Up to 12.8 inch of Rear Axle Travel Triple-Rate Rear Coils
- Spring Correction Seats
- Vehicle Lean Correction
- Upgradable to RK Long-Arm System
- Best Technical Support in the Industry
- Jeep Remains Level on All 4 Corners
- Lifetime Warranty Coverage

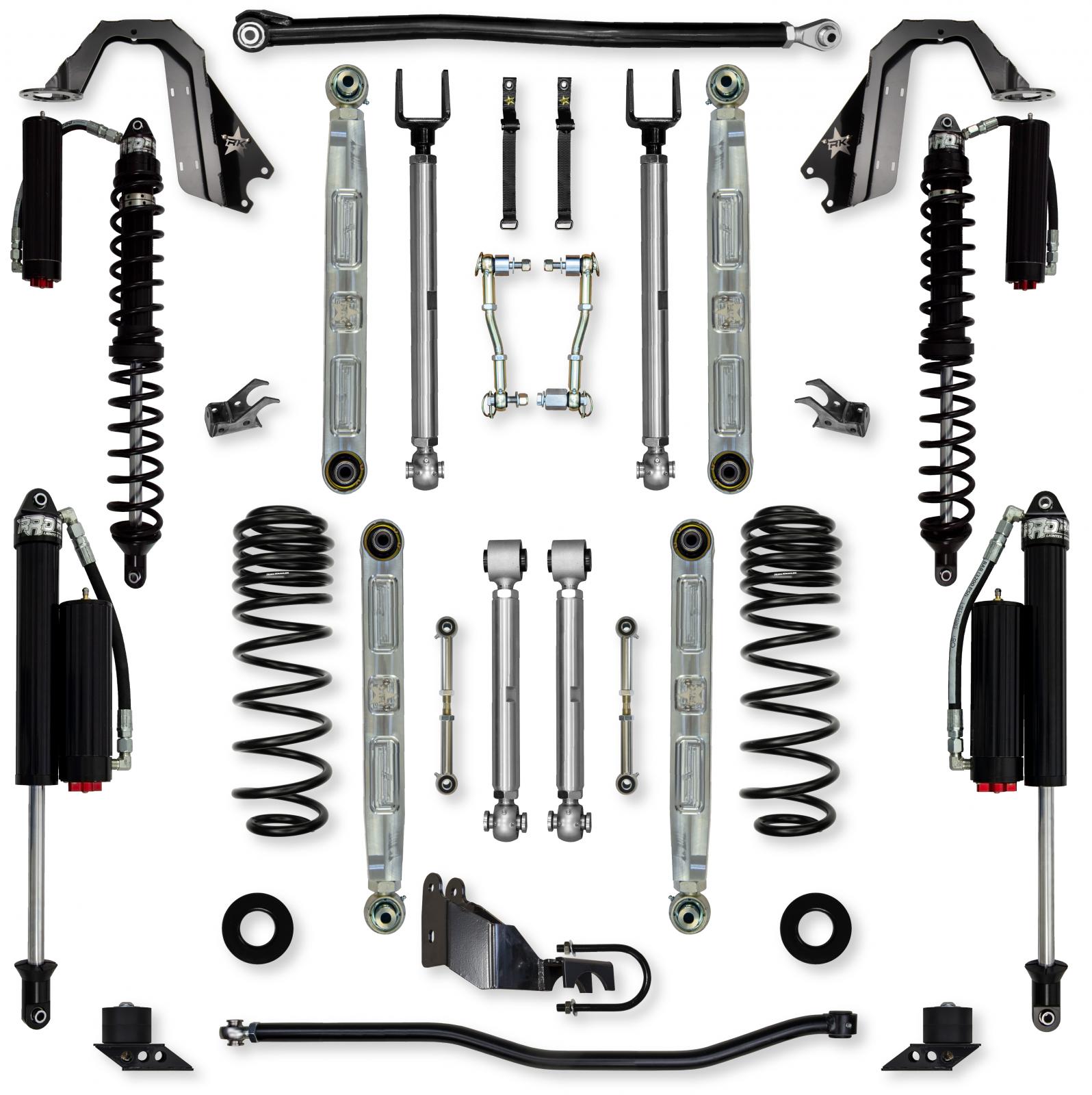

System Includes:
- (2) Rear Triple-Rate Coil Springs
- (2) Front Billet 7075 Aluminum Adjustable Lower Control Arms
- (2) Front 7075 Aluminum Adjustable Upper Control Arms
- (1) Adjustable Front Track Bar
- (2) Gen-II Sway Bar Links
- (2) Rear Billet 7075 Aluminum Adjustable Lower Control Arms
- (2) Rear 7075 Aluminum Adjustable Upper Control Arms
- (2) Adjustable Rear Sway Bar Links
- (1) Bolt-on Rear Track Bar Relocation Bracket
- (1) Rear Adjustable Track Bar
- (2) Spring Correction Seats
- (Depending on shock package chosen) Shock Towers and Brackets
Shock Information:
- All RRD Shocks and Coilovers are designed and built in-house
- Comp System Stage 1 (Coilover Front/Coil Spring Rear) 12 inch Travel Front RRD 2.625 RR Coilover Shocks Yielding 13.3 inch of Front Axle Travel 11.5 inch Travel Rear RRD 2.625 RR Shocks Yielding 12.8 inch of Rear Axle Travel
- Comp System Stage 2 (Coilover Front/Coil Spring Rear) W/Fast CD Adjustable Shocks 12 inch Travel Front RRD 2.625 FCD Coilover Shocks Yielding 13.3 inch of Front Axle Travel 11.5 inch Travel Rear RRD 2.625 FCD Shocks Yielding 12.8 inch of Rear Axle Travel
Wheel Fitment:
- Sport and Sahara Wheel Fitment Recommendations 37 inch/38 inch Tall Tires - Recommend 3.5 inch of Back Spacing
- Rubicon Fitment Recommendations 37 inch Tall Tires - Recommend 4.5 inch of Back Spacing 40 inch Tall Tires - Recommend 3.5 inch of Back Spacing
Tire Fitment:
- Sport and Sahara with
- Full OEM Fenders 37 inch Tall Tires (3 inch Bump Stop Height Recommended)
- Sport and Sahara with Trimmed or High Lined OEM Fenders 38 inch Tall Tires (3 inch Bump Stop Height Recommended)
- Rubicon
- Full OEM Fenders 37 inch/38 inch Tall Tires (3 inch Bump Stop Height Recommended)
- Rubicon OEM Fenders Trimmed or High Lined 40 inch Tall Tires (3 inch Bump Stop Height Recommended)
General Notes:
- All lift heights based on Rubicon models for standard style build (i.e. front bumper and winch, rear bumper and full size spare).
- If building with a spare delete we recommend dropping 1 inch in coil lift height for the rear.
- If building an extended off-road and expedition travel or heavily upfitted build in the back, we recommend upsizing 1 inch in coil lift height for the rear.
- We recommend a new front driveshaft if you plan to off-road routinely.
- (Adam's Driveshaft, Tom Woods, J.E. Reel) We recommend welding the rear cradle for use with 37 tires and above.
- Requires removal of the OEM shock mount of frame Requires removal of the OEM shock and spring mount of the axle Requires welding of the new coilover mount on the axle only
