4.5 Inch X-Factor X2 No Limits Long-Arm Suspension System for Jeep Wrangler JLU Diesel Models With IFP Shocks Rock Krawler

Rock Krawler 4.5 X-Factor X2 No-Limits Long-Arm Suspension System for Jeep Wrangler JLU (Diesel Models)

The Rock Krawler Suspension 4.5 X - Factor X2 No-Limits Long-Arm Diesel System is specifically designed for Wrangler owners who want to push their vehicle to its limits with hard core rock crawling. The term No-Limits comes from the inclusion of our front sway bar links specifically designed for use with the factory electronic sway bar disconnect feature found standard in your Rubicon Wrangler!

The sway bar links themselves come with factory sized hardware, a CNC machined billet aluminum center section, and Made in USA heim joints from FK bearing, once installed, just press the button and hit the rocks!

The Rock Krawler X2 Long-Arm System features an Independent 3 link design front & rear for maximum articulation and off-road performance. Our proprietary design utilizes a double adjustable front and rear upper control arm that upsizes the factory hardware to 14mm, 2 3/8 mounting width and 1 Pro Krawler joints at each end.

The arm itself is a chromoly solid steel arm meant to carry all the forces of the suspension. The rear suspension provides adjustable anti-squat with X2 rear suspension geometry with enhanced rear instant center (s) and rear roll center (s).

As you drive the highways or the trails, the system feels stable, safe and strong whether you are running the stock drivetrain or pushing high horsepower through the chassis.

We have built the X-Factor X2 system to be the toughest 3-Link setup on the market. At the frame connections of the lower control arms, our Adventure Series maintenance-free joint is used to cut down on the amount of grease points, and provide excellent vibration absorption and proper joint misalignment when off-road.

The combination of high clearance long arms and 3 link suspension geometry lets you dominate the trails. When we design a system, our goal is to provide you with the most comprehensive solution and the best geometry, install exceptional value, and be the foundation for every adventure whether it be on the Street, in tow or down a trail!

Thank you for considering Rock Krawler Suspension.

System Benefits:

• Excellent Highway Ride
• Improved Off-Road Ability
• Maintenance Free/High Ability Control Arms Featuring our Award Winning Adventure Series joints
• Full High Clearance Design
• High Clearance 4 Link Long Arm Front Suspension
• High Clearance Independent 3 Link Long Arm Rear Suspension Heat Shield Thermal barrier products, just like OEM to protect the front control arm joints at the frame
• 4.5 Rear Clearance Gain from the X2 Axle Bracket System
• Adjustable Rear Anti-Squat Featuring X2 Geometry
• Designed to be the Ultimate Compromise between On Highway Handling and Hard Core Off-Road Ability
• Lifetime Warranty Coverage

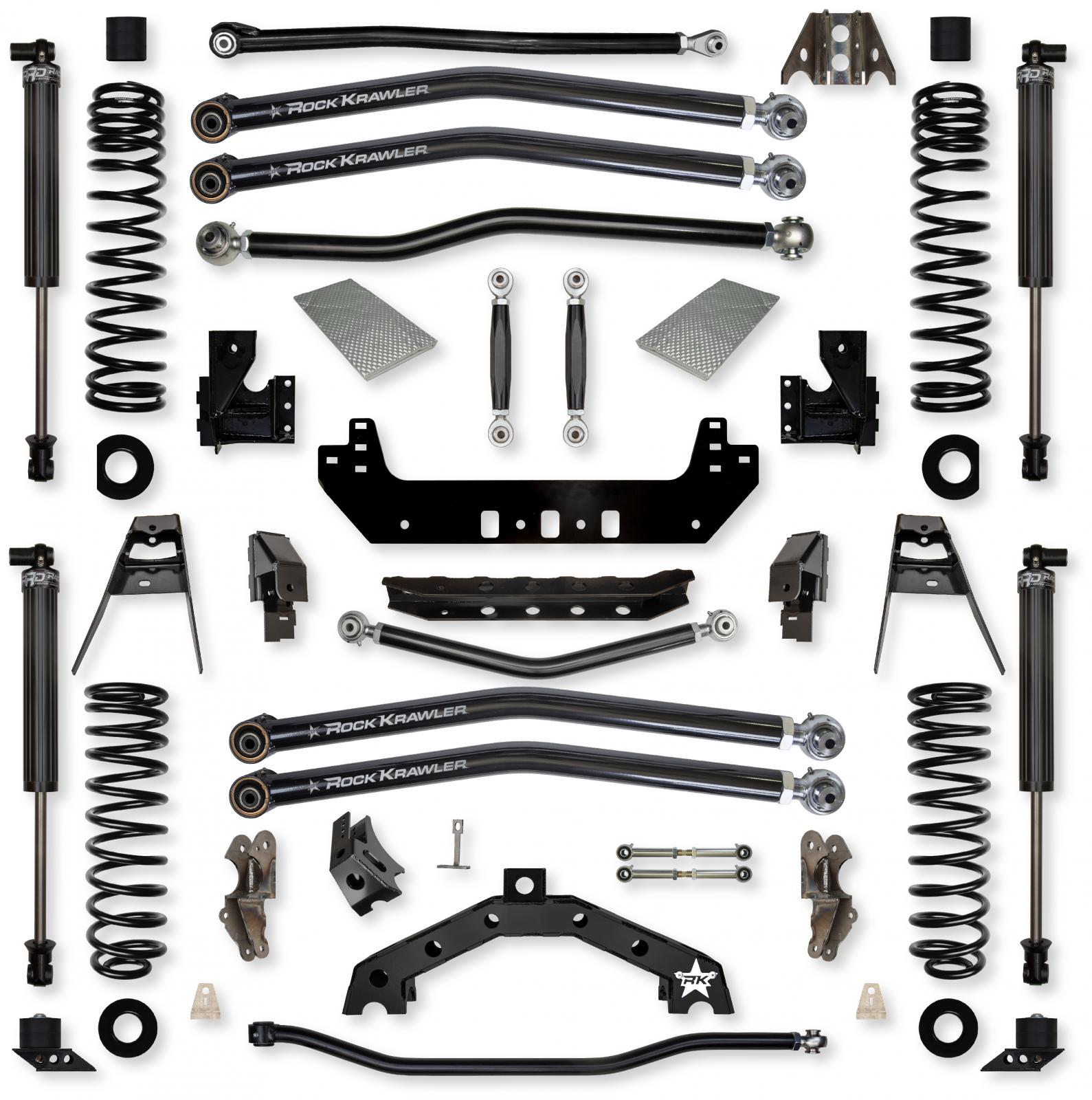

System Includes:

• (1) Weld-on Front Long-arm Mounting System
• (1) Heat Shield Products Sticky Shield Kit
• (1) Front Adjustable Anti-wobble Track Bar
• (2) High Clearance Adjustable X-Factor Front Lower Control Arms
• (1) Adjustable Front Upper Control Arm
• (1) Front No-Limits Sway Bar Kit
• (4) Triple-rate Coil Springs
• (4) Coil Spring Correction Seats
• (2) Weld-on Rear Frame Side Long Arm Mounts
• (2) High Clearance Adjustable X-Factor Lower Control arms
• (1) Rear Upper Control Arm
• (1) Rear Frame Side Upper Control Arm Mount
• (2) Rear Extended Sway Bar Links
• (1) Rear Adjustable Anti-wobble track bar
• (2) Weld-on Rear Upper Shock Mount
• (2) Weld-on Rear Axle Side Control Arm Mount
• (1) Weld-on Rear Track Bar Mount
• (1) Weld-on Rear Axle Truss
• (2) Rear Brake Line Relocation Brackets
• (Depending on shock package chosen)
• Bump Stops Are Included with All Shock Options
• If you choose no shocks, bump stops can be purchased separately - RK07124

Shock Information:

• All RRD Shocks and Coilovers are designed and built in-house
• Generic Front Shock Length - 18.31 inch Collapsed/30.31 inch Maximum Extended
• Generic Rear Shock Length - 19 inch Collapsed/31 inch Maximum Extended
• Bilstein 5100 Shocks
• A great pairing with our multi-rate coil springs
• Maintenance Free RRD 2.25 IFP Shocks
• 2.25 inch O. D. Military Grade Hard Anodized Fluted Aluminum Shock Body
• Cooling Surface Area of a 2.5 inch Shock
• 3/4 inch 17-4 PH Stainless Steel, Hard Chrome Plated and Polished Shaft
• Billet Aluminum Valve Circuit and Components
• Dual DU Shaft Bearings and Double Redundant Sealing Methods
• Serviceable/Rebuildable/Revalveable
• More Info

Wheel Fitment:

• Rubicon Fitment Recommendations 37 inch Tall Tires - Recommend 4.5 inch of Back Spacing 40 inch Tall Tires - Recommend 3.5 inch of Back Spacing

Tire Fitment:

• Rubicon with
• Full OEM Fenders 37 inch/38 inch Tall Tires (3 inch Bump Stop Height Recommended)
• Rubicon with Trimmed or High Lined OEM Fenders 40 inch Tall Tires (3 inch Bump Stop Height Recommended)

General Notes:

• All lift heights based on Rubicon models for standard style build (i.e., front bumper and winch, rear bumper and full-size spare).
• XR Package does not require our raised rear track bar bracket, the factory axle has a raised rear trackbar bracket, and for our systems that do not have a rear trackbar one must be added.
• If building with a spare delete, we recommend dropping 1 inch in coil lift height for the rear.
• If building an overland or heavily upfitted build in the back, we recommend upsizing 1 inch in coil lift height for the rear.
• Recommend a new front C.V. Driveshaft for all front shocks with max.
• Extended length greater than 29 Front 3-Link suspension systems require aftermarket front axles that don't have F.A.D. Requires welding of the Front and Rear Long Arm Mounts Requires removal of the OEM frame side lower front and rear control arm mounts Requires removal of the OEM frame side front and rear upper control arm mounts Requires removal of the OEM axle side rear lower control arm and track bar mounts Requires modifying the OEM rear shock mounts and welding of the raised rear upper shock mounts Recommend installing limiting straps to avoid over extension of suspension components after vehicle is all set up
