Yukon performance axles are built with high-tensile strength 4340 chromoly, use superior production methods that include cold roll formed splines, and feature advanced heat treating to create an axle of unmatched quality and durability. Yukon high-performance axles are built with high-tensile strength 4340 chromoly, use superior production methods that include cold roll formed splines, and feature advanced induction coil heat treating to create an axle of unmatched quality and durability.

Features:

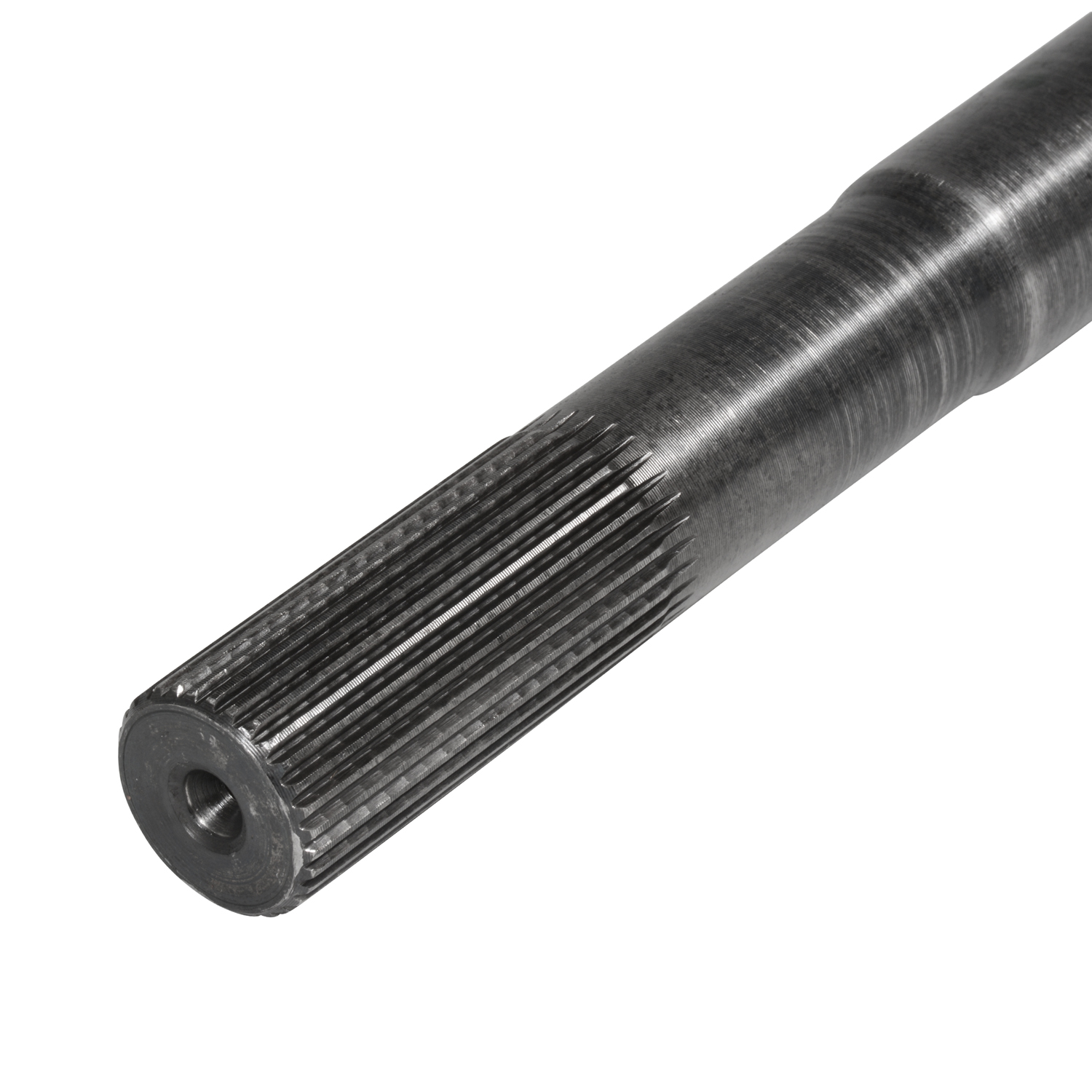

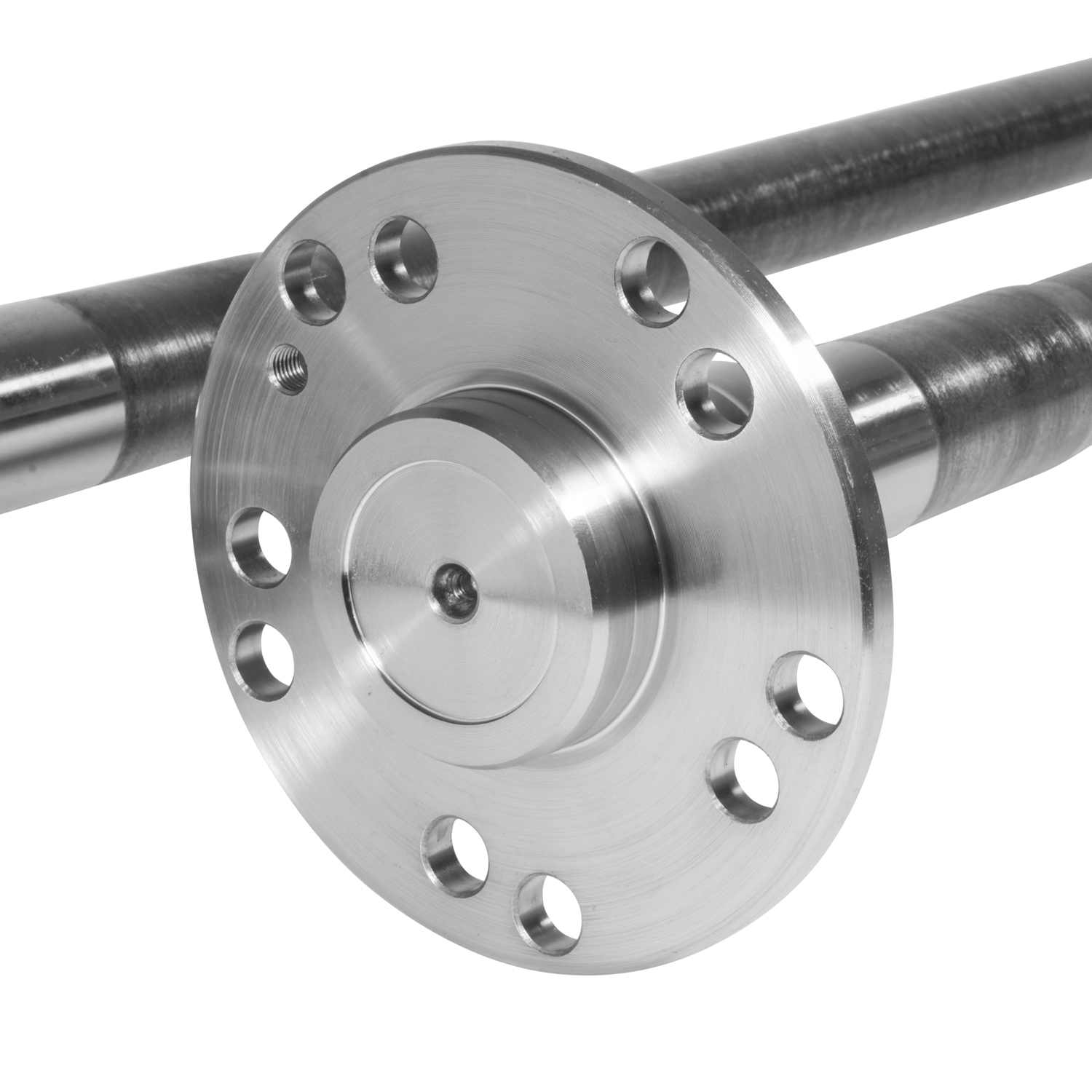

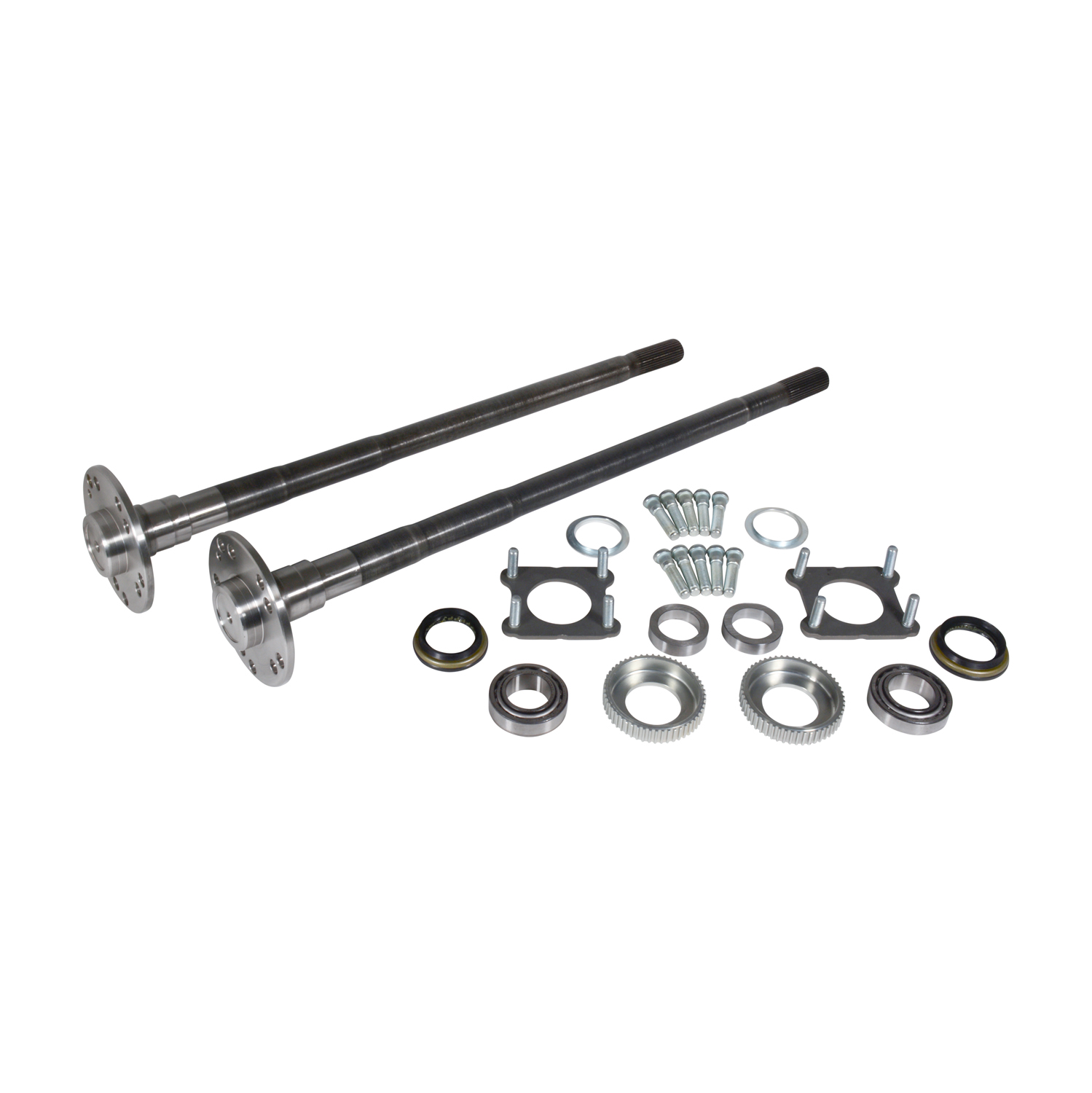

Fits Dana 44/M220 differential 32 spline LH axle shaft measures 32.2 long RH axle shaft measures 33.9 long For both sides Heavy duty 4340 chromoly construction Includes two axle shafts, axle bearings, seals, bearing retainers, wheel studs, ABS ring, and dust shield

Details:

• AAP Selling Package Quantity UOM: EA
• ABS Tone Ring Included: Yes
• Aap uda 12: EA
• Aap uda 22: 1
• Axle Shaft Seal Included: Yes
• Inboard Spline Quantity: 32
• Shaft Length: 32.2, 33.9 Inch
• Shaft Material: 4340 Nickel Chromoly Steel

Fits with Axle Code DRF = Wide Track M220.

• And with DSE or DSH = E-Locker Rear Axle
• Large Bearing Axles = 1.771 inch ID / 3.150 inch OD Bearing

Fitment Notes:

• Dana 44 (220mm DRF) Wide Track
• 4340 Chromoly Axle Kit (Both Sides)
• 32 Spline
• 33.9 inch. & 32.2 inch. Long
• Includes 3.149 inch. OD Axle Bearings, Seals, Retainers, Studs, and ABS Rings, Dana 44 (220mm DRF) JL & JT Rubicon Wide Track
• 4340 Chromoly Axle Kit (Both Sides)
• 32 Spline
• 33.9 inch. & 32.2 inch. Long
• Includes 3.149 inch. OD Axle Bearings, Seals, Retainers, Studs, and ABS Rings
