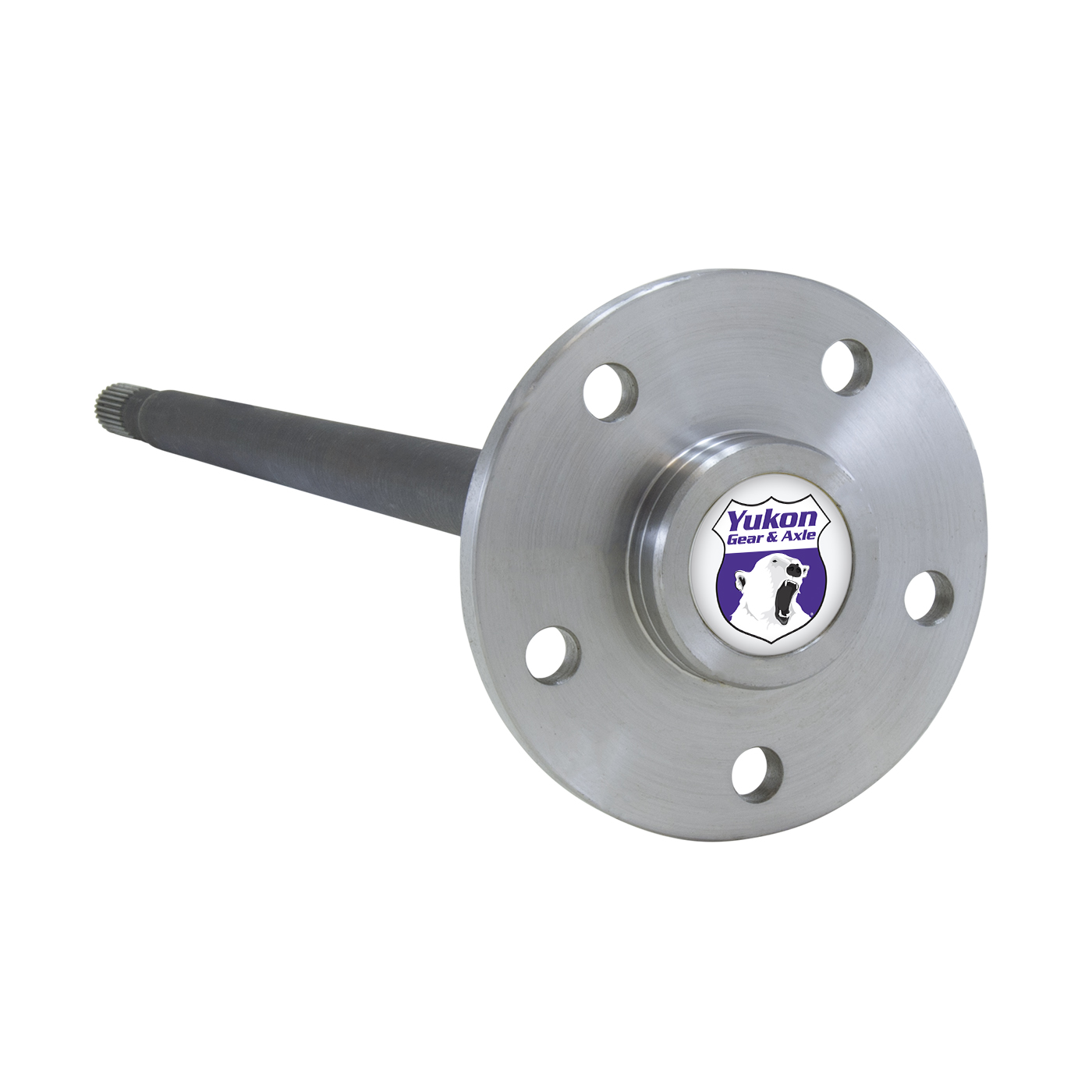

Chromoly Rear Axle Model 35 HD W/Drum Brakes Right Hand 30 Spline 29-1/4 Inch Long M35 HD C/Clip Drum Right Hand 29-1/4 Inch 30 Spline No ABS Ring 4340 Yukon Gear
Description
Yukon performance axles are built with high-tensile strength 4340 chromoly, use superior production methods that include cold roll formed splines, and feature advanced heat treating to create an axle of unmatched quality and durability. Yukon high-performance axles are built with high-tensile strength 4340 chromoly, use superior production methods that include cold roll formed splines, and feature advanced induction coil heat treating to create an axle of unmatched quality and durability.
Features:
Fits AMC Model 35hd differential 29.25 inch long 30 spline 5 lug 4340 chromoly construction Right hand side
Details:
- AAP Selling Package Quantity UOM: EA
- Aap uda 12: EA
- Aap uda 22: 1
- Axle Nut Included: No
- Axle Shaft Seal Included: No
- Axle Type: Semi-Floating
- Brake Hardware Included: No
- CV Joints Included: No
- Inboard Spline Quantity: 30
- Rust Resistant Coating: No
- Shaft Length: 29.25 Inch
- Shaft Material: 4340 Nickel Chromoly Steel
This axle requires screw-in axle studs (part number Yspstud-010). Double drilled flange for 5x4.5 inch & 5x5.5 inch bolt patterns.
Fitment Notes:
- AMC Model 35
- 29.25 inch. Long
- 30 Spline
- HD
- For Use w/C-Clip/Drum Brake
- 2.7 inch. Length
- 5 Lug
- 4340 Chromoly
