Chromoly Super Joint Single For Dana 30 Dana 44 And GM 8.5 Inch Front Diffs (1) D44 760X Extra-HD 4340 Chrome-Moly Super-Joint 297X Yukon Gear

Yukon Super Joint for GM 8.5 inch, Dana 30 & Dana 44. One single joint. Yukon Super Joints offer an upgrade in strength over factory u-joints and excel in extreme off-road applications.

Designed for Dana 60, Dana 44, Dana 30, and GM 8.5 differentials, Yukon Super Joints feature a 4340 chromoly cross and caps made from 4140 steel to isolate the wear to the caps not the cross because its a lot more convenient and less expensive to replace the caps. The end of each trunnion is home to a reservoir for the grease.

Youll notice the trunnion is larger in circumference and therefor considerably stronger than to conventional u-joints. This is because the Super Joint design eliminates the needle bearings.

The trade-off is these joints require frequent maintenance as sealed needle bearings contain their grease for a lifetime and Super Joints require regreasing, so we do not recommend installing them in daily driven vehicles.

Features:

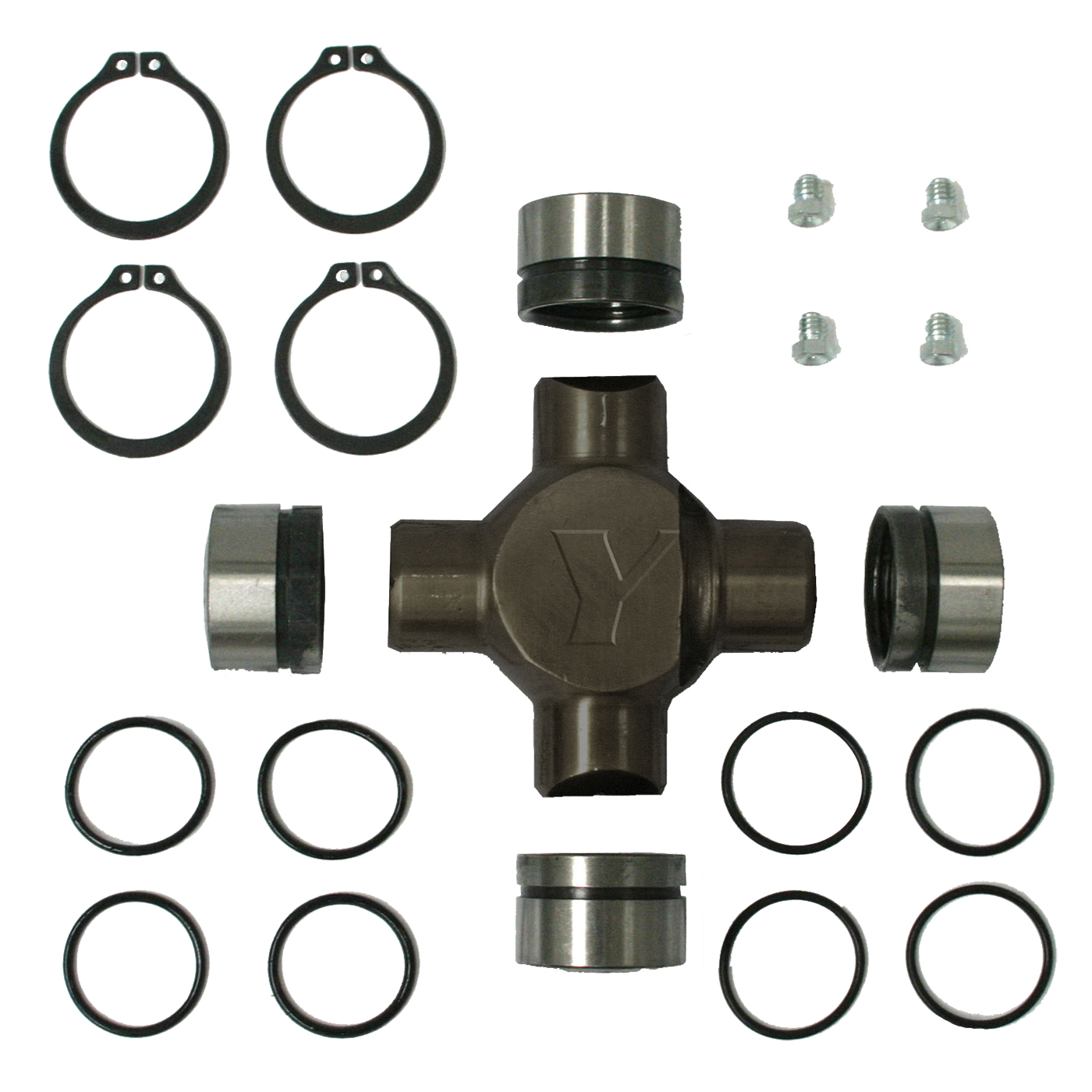

Fits Dana 30, Dana 44, and GM 8.5 inch front differentials Includes one complete joints and four full circle snap rings Not recommended for daily driven use Uses ultra-high grade anti-seize for lubrication Design eliminates needle bearings resulting in larger trunnion for added strength Features stout 4340 chromoly cross

Details:

• AAP Selling Package Quantity UOM: EA
• Aap uda 12: EA
• Aap uda 22: 1

Fitment Notes:

• Dana 44
• Standard Rotation
• Super Joint
• One Single Joint, Dana 30
• Standard Rotation
• Super Joint
• One Single Joint, Dana 30
• Reverse Rotation
• Super Joint
• One Single Joint, Dana 30
• Crush Sleeve Design
• Super Joint
• One Single Joint, GM 8.5 inch.
• Super Joint
• One Single Joint, Dana 44
• Reverse Rotation
• Straight Axle
• Super Joint
• One Single Joint
