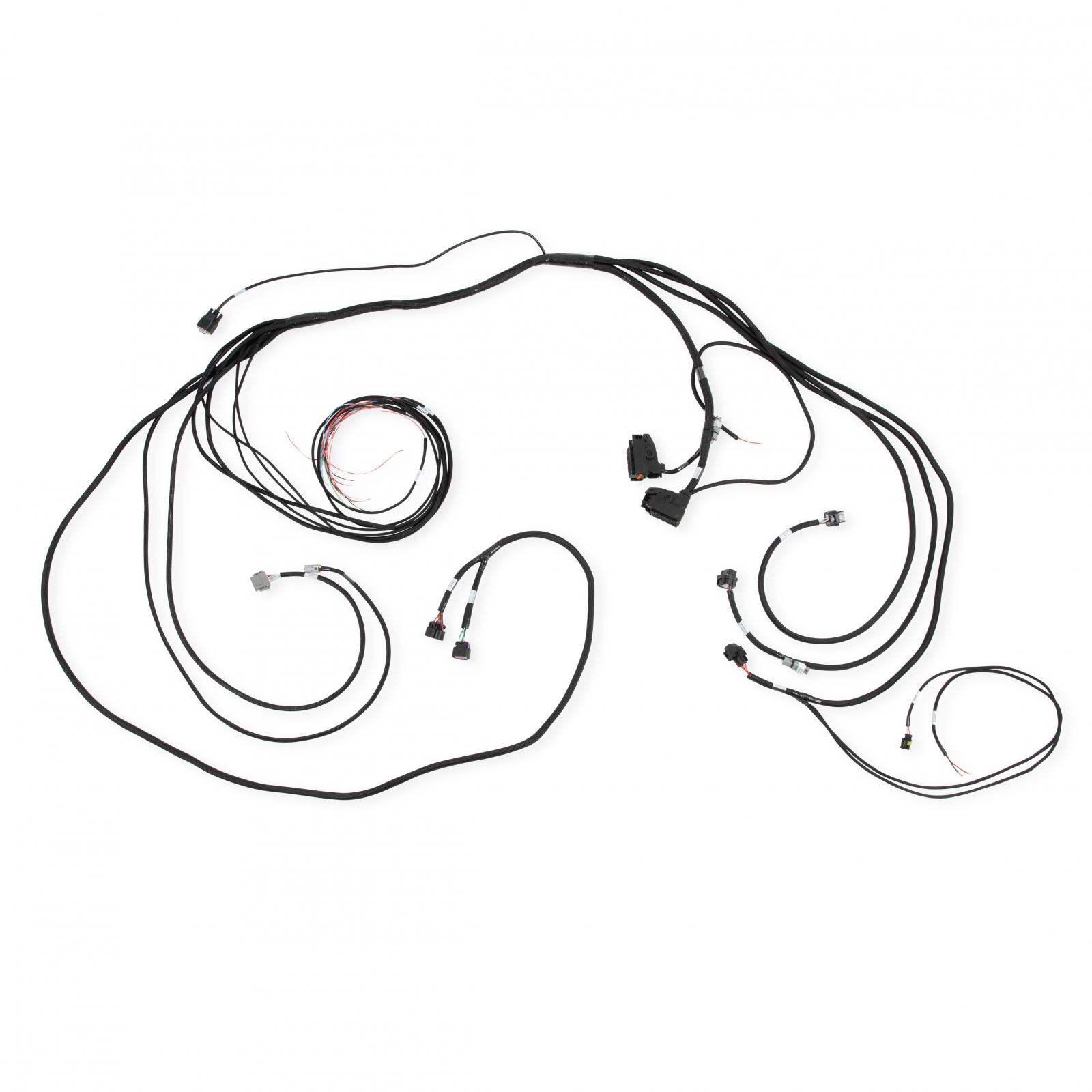

This low voltage harness assembly was designed to be installed in the rear half of the electric vehicle.

It was designed to be used with a mating front half assembly that is VCU hardware specific.

The AEM part number for the mating front half harness is 30-8600.

• Connector interface features include:
• Power Distribution Unit (PDU)
• Combined Charging Unit (CCU)
• Isabellenhutte (Ivts) - current voltage shunt based measuring system
• Life Energy Motion (LEM) - current voltage Dhab s/124 Transducer Sensor
• Inverter CAN (INV CAN)
• Inverter High-Voltage Interlock (HVIL)
• Inverter Power (INV PWR)
• J1772 Flying Leads - Proximity Pilot (Prox) and Control Pilot (CP)
• Inline Signals

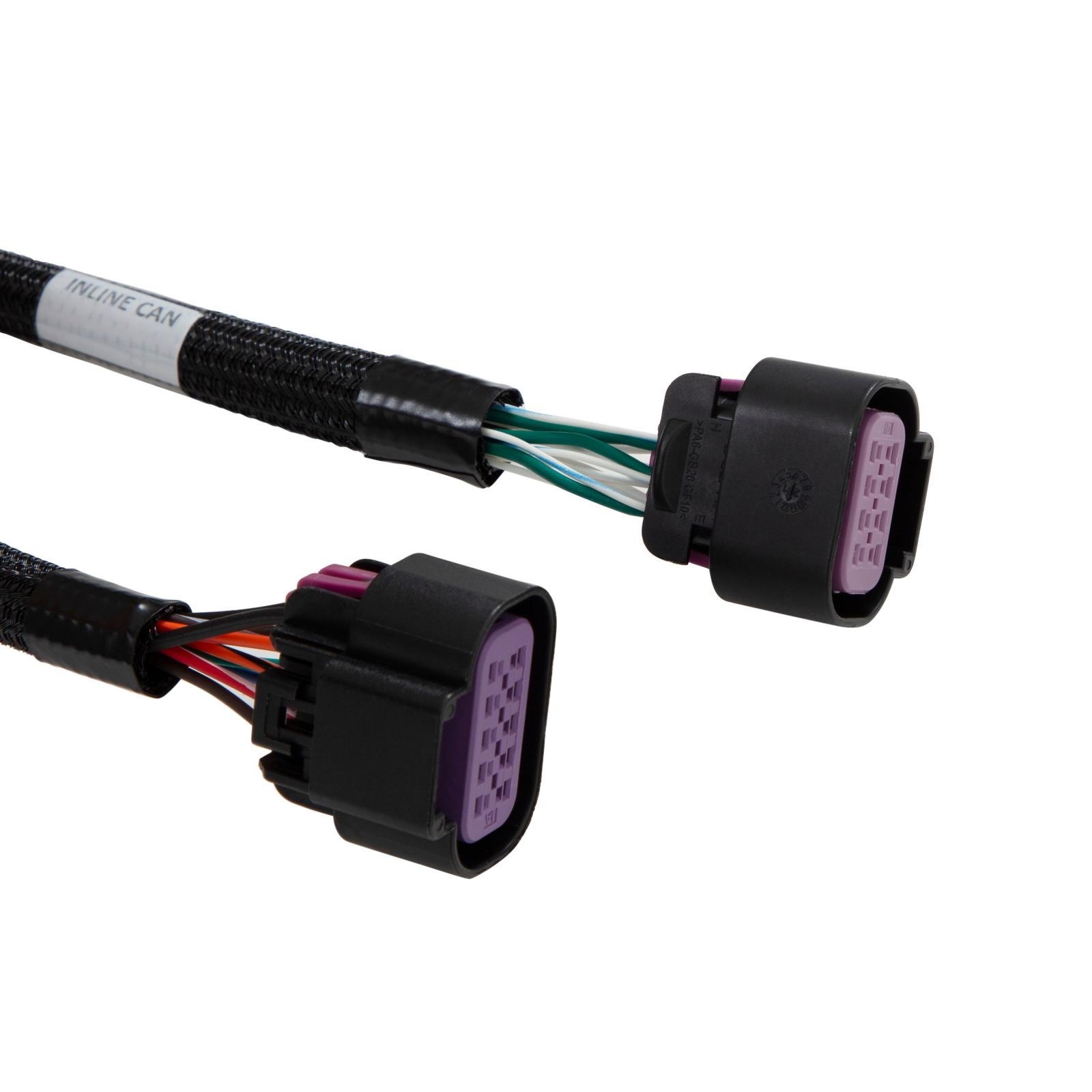

• Inline CAN

Details:

• Brand: AEM
• Color: Black
• Terminal Gender: Male/Female
• Warranty: Manufacturer's 1 Year Warranty
