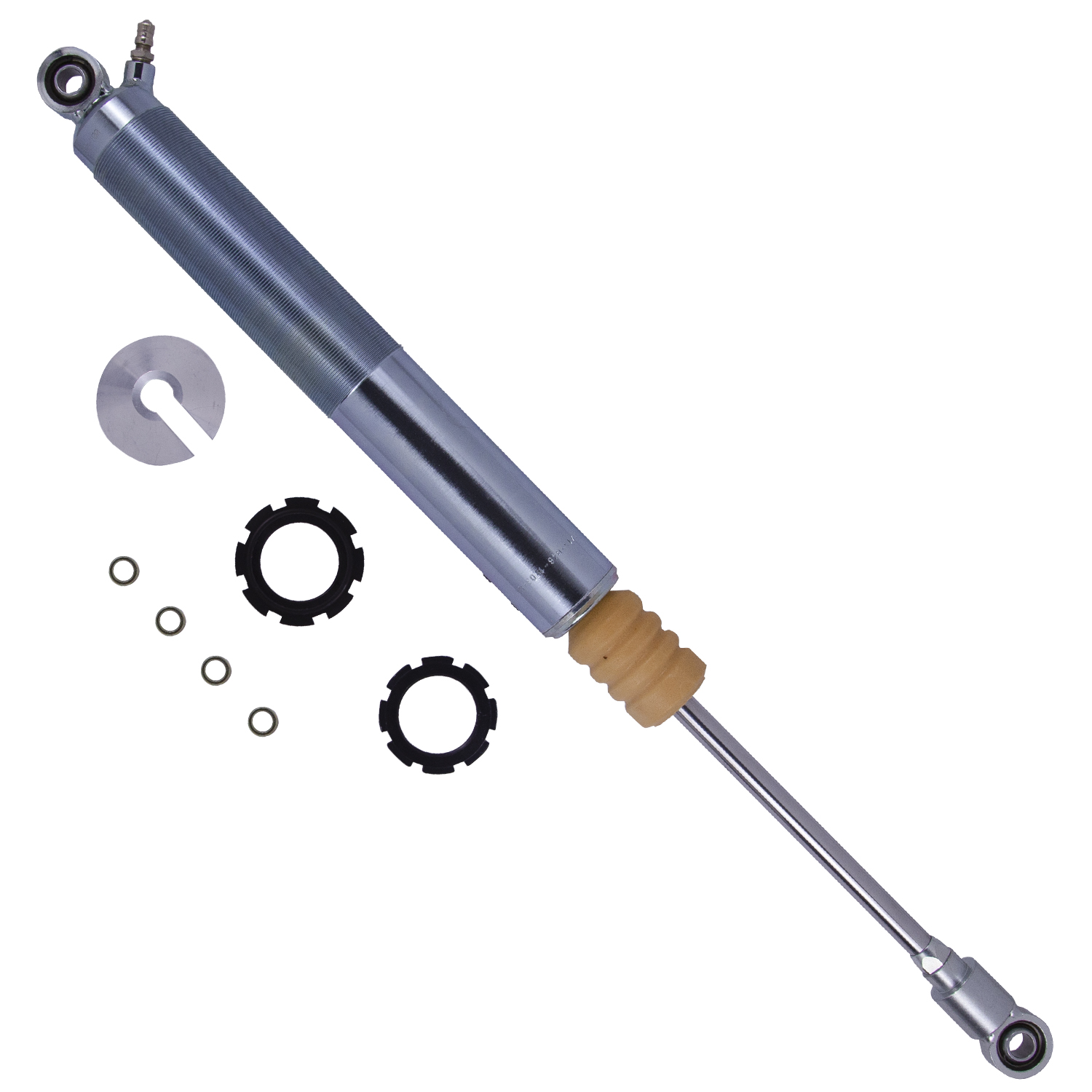

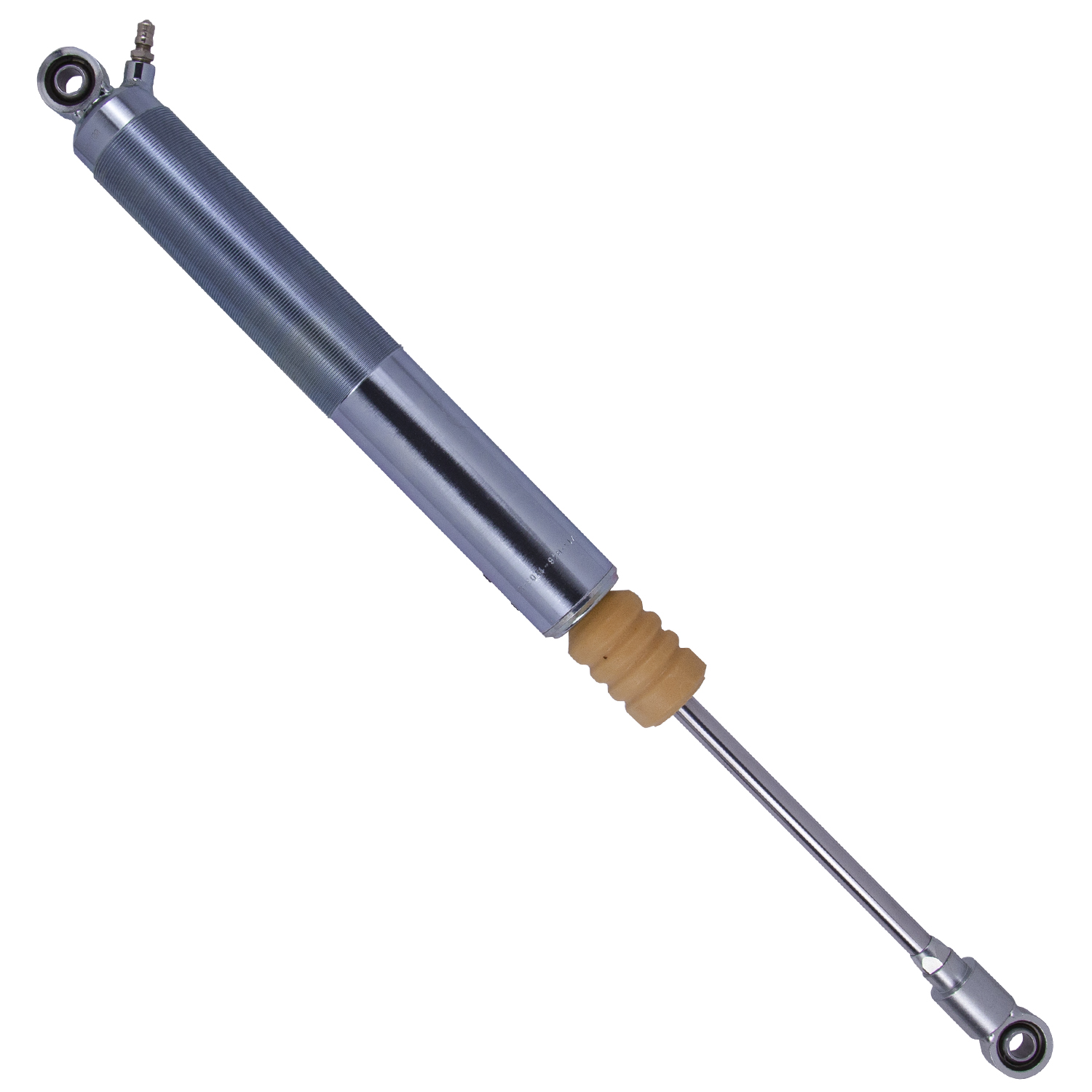

Bilstein M 7100 (Coilover) is designed for custom off-road motorsports and recreational applications. These coilovers are owner rebuildable and are available in remote reservoir or non-reservoir configurations.

• Each coilover is supplied with heims and misalignment spacers for maximum durability in off-road conditions.
• M 7100 (Coilover) is offered in a 10 inch travel stroke with a choice of multiple valve settings and will accommodate a 2.5 inch ID coil spring.

All service components are readily available and sold separately. M 7100 (Coilover) is the perfect choice for light weight off-road vehicles.

Details:

• Series: M 7100 (Coilover)
• Internal Design:Monotube
• Lower Mount Type: 1/2in Heim
• Upper Mount Type: 1/2in Heim
• Finish: Nickel Plated with Clear Powder Coat
• Body Design: Threaded Body (Coilover)
• Collapsed Length Inch: 17.44
• Compression at 52m s: 1000
• Extended Length Inch: 26.65
• Mount Type: Eye-to-Eye
• Pistion Diameter: 46mm
• Rebound at 52m/s: 2550
• Reservior: No
• Shaft Diameter mm: 14
• Stroke Travel Length In: 9.21
• Stroke Travel Length In: 233.9
• Warranty: 90 Day Warranty
