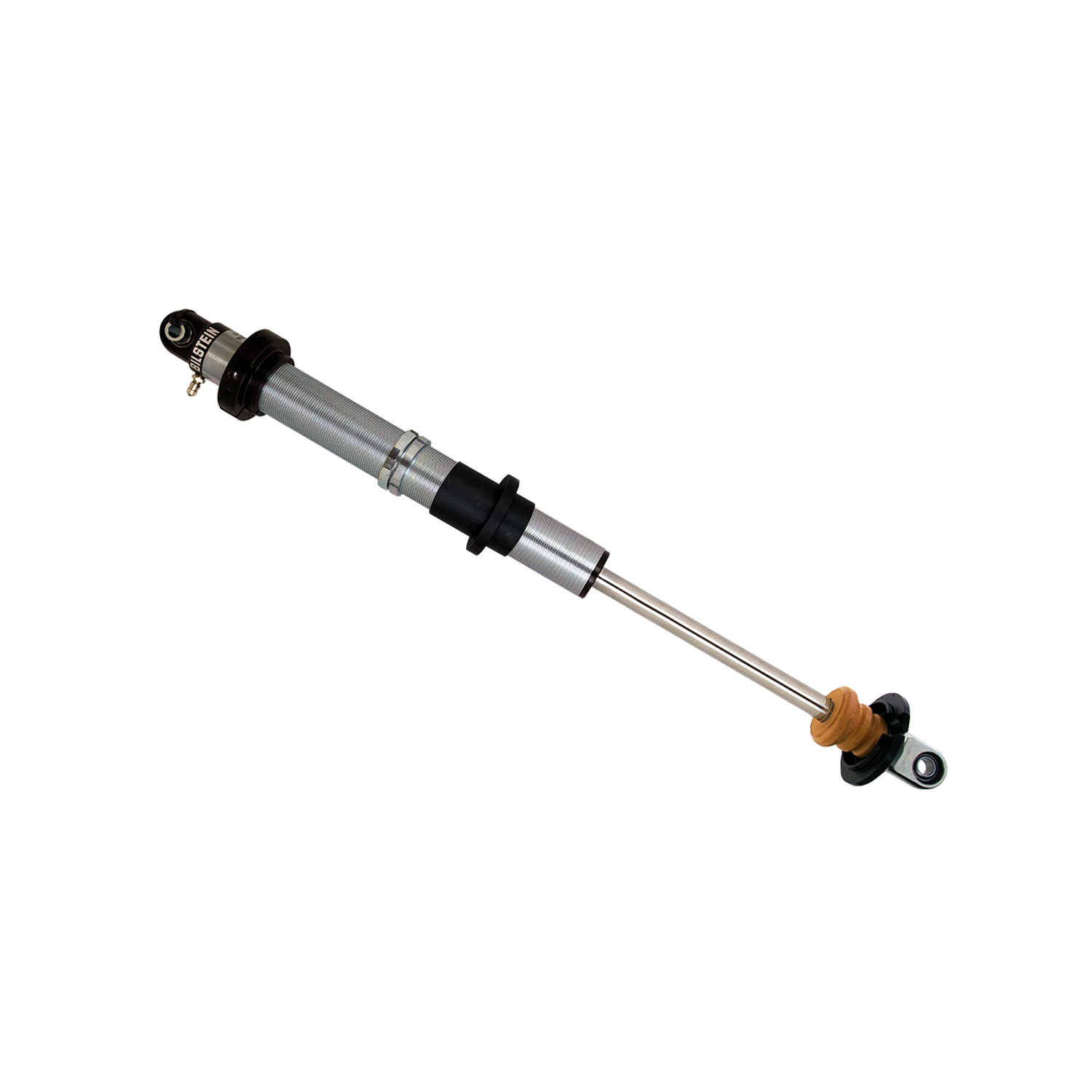

Bilstein M 9200 (Coil Carrier) is designed specifically for professional off-road competition. M 9200 (Coil Carrier) utilize a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard 2.5 inch ID coilover springs.

• This coil carrier will not provide damping, but will sustain the weight of the vehicle at the adjusted ride height.
• These coil carriers are sold by length and are for custom applications.
• M 9200 (Coil Carrier) offers the ability to efficiently adjust spring rates to achieve the optimum performance.

Details:

• Series: M 9200 (Coil Carrier)
• Internal Design:Monotube
• Lower Mount Type: Eye .5x1.5in
• Upper Mount Type: Eye .5x1.5in
• Finish: Zinc Plated
• Body Design: Threaded Body (Coilover)
• Collapsed Length Inch: 19.5
• Compression at 52m s: Coil Carrier No Valving
• Extended Length Inch: 31.5
• Mount Type: Eye-to-Eye
• Pistion Diameter: 46mm
• Rebound at 52m/s: Coil Carrier No Valving
• Reservior: Yes
• Shaft Diameter mm: 22
• Stroke Travel Length In: 12
• Stroke Travel Length In: 304.8
• Notes: 46mm Coil-Carrier, 12. 0 Inch, 9200 Series
• Warranty: 90 Day Warranty
