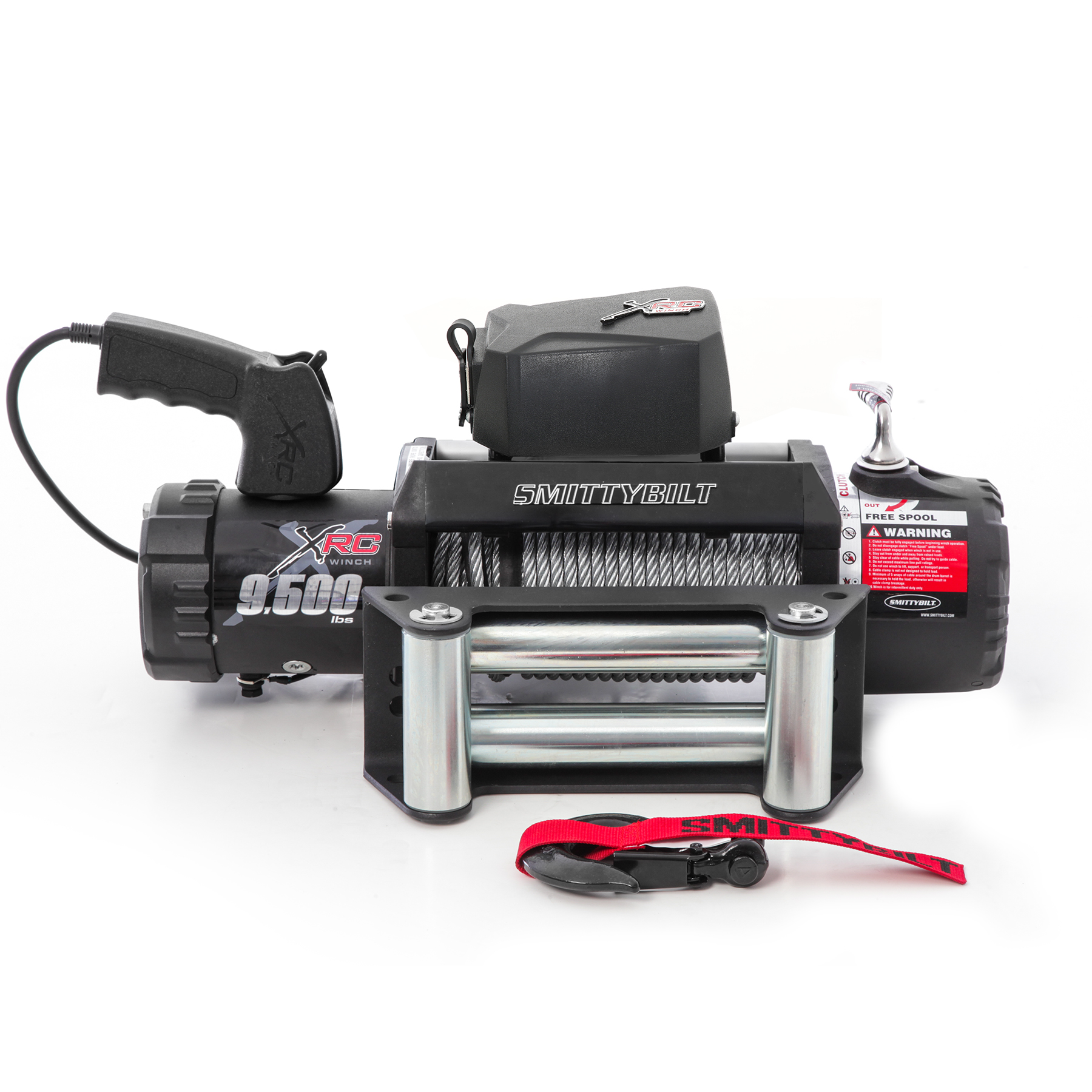

XRC Fairlead 4-Way Roller Rated Line Pull 9,500Lbs 4,309kgs Single-line Remote Control Winch Gen2 Smittybilt
Description
The new Smittybilt Xrc winches have been thoroughly updated with heavy-duty features for enhanced performance and durability. Ranginging from 9,500lb to 17,500 lbs capacities, Smittybilt's Xrc Series winches can handle any situation you can get into.
Every Xrc winch features a Series Wound 6.6 HP motor and a 3-Stage Planetary Gear System with revised gear ratios for increased pulling power and lightning-fast line speeds. Every winch is finished in a rugged UV-Resistant matte black coatingwith stainless steel hardware and oversized aluminum crossbars to provide you with a great looking system that will last you a lifetime.
Every Xrc winch includes a heavy duty winch controller, four-way roller fairlead, forged steel tow hook, and a redesigned solenoid box that can be mounted in 3 different positions for maximum versatility. If you're looking for a winch equipped with a synthetic winch rope, look to the Xrc Comp Series for the ultimate in pulling power and performance.
A Smittybilt Xrc winch is a complete recovery system with the muscle and reliability to bail you out of any situation.
Features and Benefits:- Waterproofing: IP67 Rating
- Fairlead: 4-Way Roller
- Rated Line Pull: 9,500Lbs (4,309kgs) single-line
- Remote Control: Included
- Motor: 6.6hp Series Wound
- Recommended Battery: 650CCA Minimum for Winching
- Control: Remote Switch, 12 (3.7m) lead
- Battery Leads: 25mm, 72 inch (1.83m)
- Gear Train: 3-Stage Planetary
- Gear Ratio: 161.28:1
- Finish: Textured Black
- Weight: 78.0 lbs (35.0 k)
- Clutch: Sliding Ring Gear Mounting
- Bolt Pattern: 10.0 inch x 4.5 inch
- Brake: Automatic in-Drum
- Overall Dimensions (L x W x H): 22.3 inch x 5.4 inch x 9.4 inch
- Drum Size: Diameter 2.5 inch
- Cable Type: Wire Rope
- Cable: 93.5 5/16 inch Diameter
- Length: 10.0 inch (254mm)
- Fitment: Universal Fit
- Hardware Included: Yes
- Line Type: Cable
